Zigbee Smart Shutter Switch Module 2-Channel
-
Zigbee Connected
Connect this smart shutter switch module to one Zigbee 3.0 HUB or gateway, which is purchased individually;
-
Mobile App Control
Take full control of your blinds/curtains/roller shutters from mobile App, no matter where you are;
-
Highly Compatibility
This smart curtain module is compatible with existing curtain switches;
-
Voice Control
Support voice control via amazon Alexa/Echo/Dot, Google Home, Yandex, etc;
-
Time Schedule
Create custom schedules based on your agenda or follow the sunrise or sunset.
-
Smart Scenarios
Create smart scenarios by linking the smart curtain module with other Netplus smart devices.

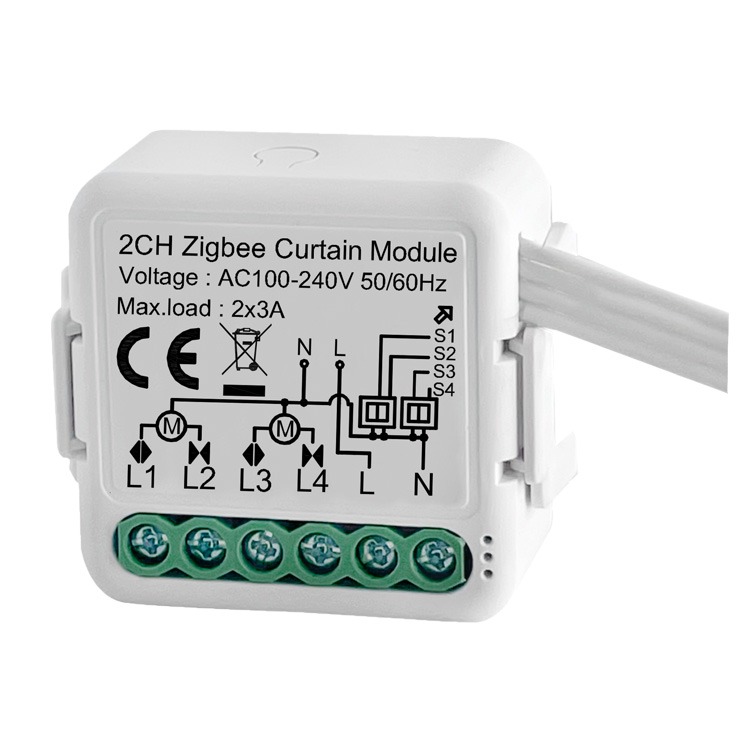

Netplus 2-channel Zigbee smart shutter switch module works with motorized sunblinds, window curtains, roller shutters, awnings, etc. and let them remote or wireless control from smartphone App.
This Tuya smart shutter switch module is powered by a single-phase AC and provides the opening percentage of blinds, curtains or awning so they can be set to the position you prefer.
Flexible Installation
Netplus smart home curtain module is originally designed to be compatible with existing curtain switches, keeping its mechnical function and at the minimum change of your current electrical system.

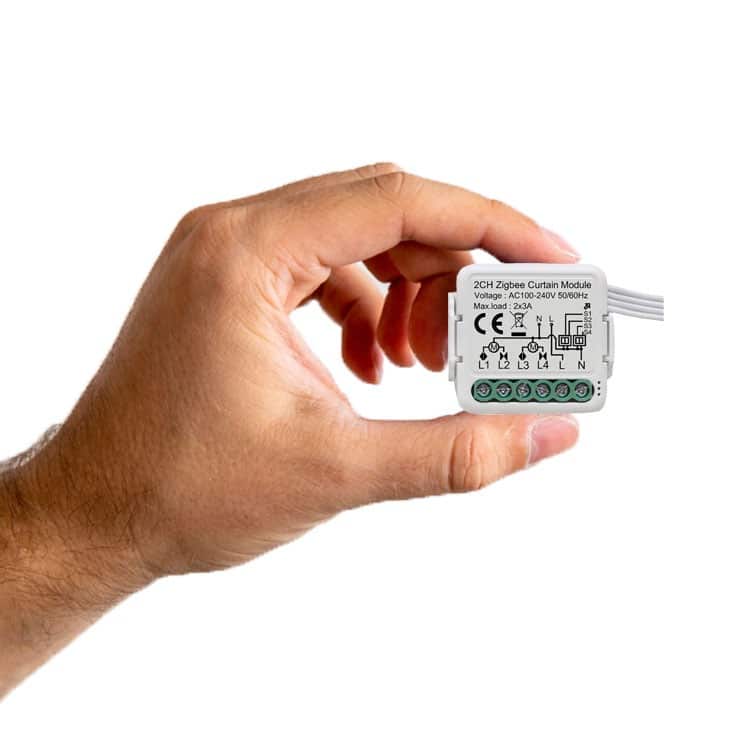

Thanks to its miniature size, this curtan switch smart module fits most of the flush mounted junction boxes, with no need of recontruction or rewiring.
Mobile App Remote Control
You’re about to sleep after a mobile game on bed, but your window curtain still open. Don’t want to get up? That’s easy, close it by using your cellphone.
Hand-free Voice Control
Netplus smart curtain modules work with amazon Alexa/Echo/Dot, Google Home, Yandex, etc. After pairing with them, you can control your home curtains, sunblinds with simple voice commands, no need to touch a switch or open the app, just ask Alexa to proceed commands.
- Alexa, open the curtain to 70%
- Google, close the sunblinds
Device Sharing
Add your family members in the sharing list, then they are capable of controlling the same devices.
Smart Scenarios
Set the smart module to activate custom scenes based on temperature, humidity, light, or various occurrences. Use Netplus gate smart module to open your swing gate when you drive home, then smart switch turn on lights, air conditioning during the period of parking car.
Product Technical Data
Basic Information |
|
Product Type | Smart Shutter Switch Module |
Article | 2-channel Zigbee Smart Shutter Switch Module |
Art. No. | SH-Zigbee-CS01-2C |
Input | AC100-240V 50/60Hz |
Output | AC100-240V 50/60Hz |
Load | max. 3A/channel x 2 channels |
Channels | 2 channels |
Power Measurement | No |
Management App | SmartLife or TuySmart App |
Operation Range | < 200 meters |
Standby Power | < 0.5W |
Overload Protection | Yes |
Neutral Wire Required | Yes |
Warranty | 2 years |
Certificates | CE / EMC / LVD |
Connectivity |
|
Protocol | Zigbee 3.0 |
Wireless Standard | IEEE 802.15.4 b/g/n |
Antenna | A ceramic antenna integrated on PCB board |
Security Module | WPA / WPA2 |
Encryption Type | WEP / TKIP / AES |
Operating Systems | Android & iOS |
Appearance |
|
Dimension | 40 mm x 40 mm |
Depth | 18 mm |
Colour | White |
Net Weight | 35 g |
Casing Material | PC V0 |
Working Environment |
|
Operation Temp. | -10ºC – +40ºC |
Case Temp. | Tc: +80ºC (Max.) |
Working Humidity | 5% – 95% RH, non-condensing |
IP Rating | IP20 for indoor use |
